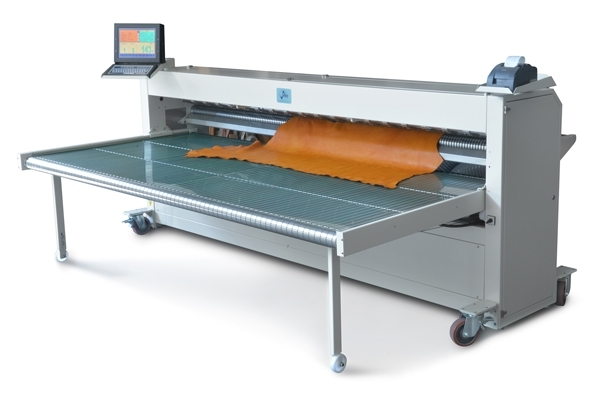

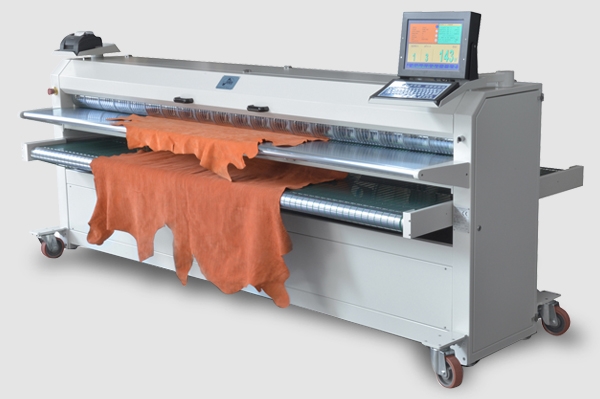

ROLLMIR-ST

General features

Reduced sizes, high accuracy and flexible use measuring machine suitable to measure every type of soft or firm leather.

The measuring system with independent rollers allows the stretching and the perfect detection even of the most irregular leathers.
The measuring rollers with two stainless steel swing-arms (patented), the main chromium plated steel conveying rollers and the stainless steel creeping tables grant high reliability and long life.

The machine may be used with one operator back-feed measuring mode or two operators through-feed measuring mode:

• the model ROLLMIR-ST has an auxiliary tape conveyor with sliding position and two running directions that allows automatic transit of the leathers: in back-feed mode the leathers come back to the feeding operator hands, in through-feed mode it is possible to transfer the leathers directly on another next conveyor (i.e. stacker).

A revolving operator interface with video and keyboard grants a clear reading-out of the measuring data and an easy and quick access to all the machine functions, it's also completed by a quick bicolour alphanumerical printer.

Strengths

• Measuring rollers with two stainless steel swing-arms
• High precision measurement with 20 mm. reading pitch
• Multiprocessor electronic
• Allows single operator measuring mode

Available models and dimensions

(A width, L lenght, L1 open lenght, H height, mm)
