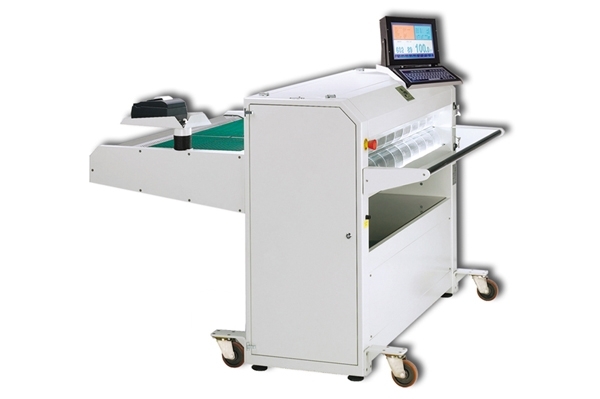

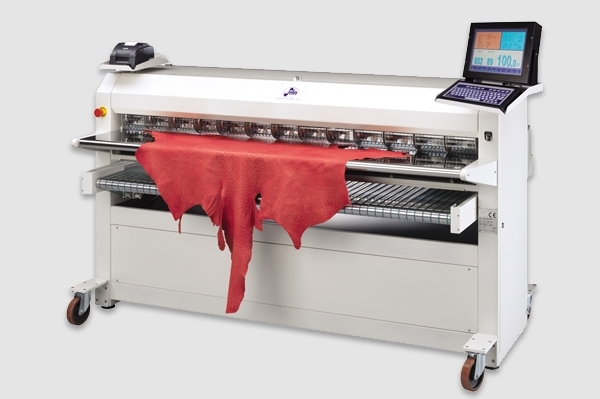

ROLLMIR & ROLLMIR T
Roller type area measuring machine. High precision and maximum flexibility with any type of soft leather
Electronic area measuring machine for finished leathers
Reduced sizes, high accuracy and flexible use measuring machine suitable to measure every type of soft or firm leather.
The measuring system with independent rollers allows the stretching and the perfect detection even of the most irregular leathers.
The measuring rollers with two stainless steel swing-arms (patented), the main chromium plated steel conveying rollers and the stainless steel creeping tables grant high reliability and long life.

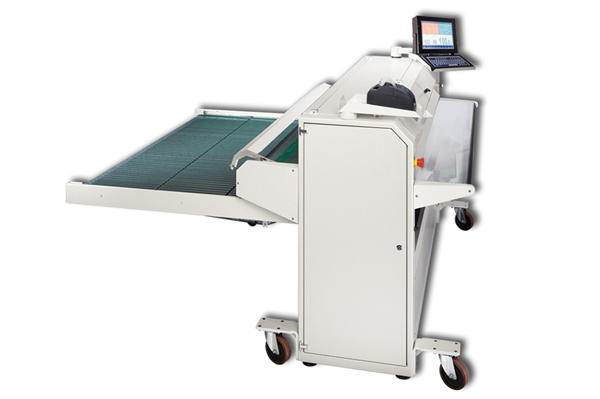

The model ROLLMIR T is provided also with a second tape conveyor with sliding position and two running directions. This auxiliary conveyors allows both “back-feed” single operator measuring mode, with leathers returning back to the feeding operator hands, and standard “throughfeed” measuring mode with two operators or the possibility of direct transfer of the leathers on other next conveyor (i.e. stacker).
A revolving operator interface with wide LCD colour monitor and keyboard grants a clear reading-out of the measuring data and an easy and quick access to all the machine functions.
(A width, B length, C height, mm)
| ROLLMIR | A | B | C |
| 1600 | 1870 | 1800 | 1740 |
| 2100 | 2350 | 1800 | 1740 |
| 3200 | 3470 | 1850 | 1740 |
| ROLLMIR T | A | B | C |
| 1600 | 1870 | 1470/2350 | 950 |
| 2100 | 2350 | 1470/2350 | 950 |
| 3200 | 3470 | 1470/2350 | 950 |
For further information about this product, click here and fill the form below »
Selin Projects targets its measuring machines for finished leather or wet blue leathers and its electronic systems to the tanning industry sectors and to the districts specialized in the various commodity destinations: footwear, leather goods, furniture, leather clothing, automotive.
